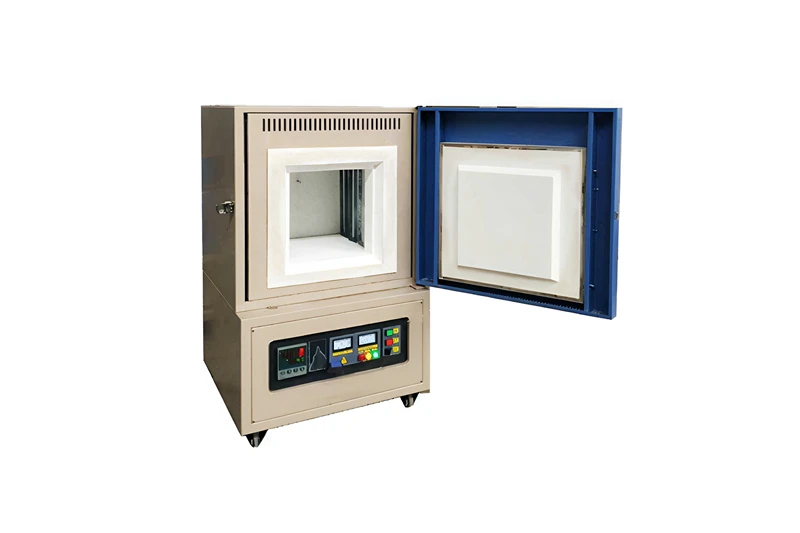

This Muffle Furnace uses high-purity fiber lining to ensure a very good thermal effect, Double layer of furnace shell with fan cooling, and the surface temperature is less than 60 ℃. Strength structured furnace roof, to ensure long life to avoid any collapse from continuous working. The furnace is a special equipment specially developed for the sintering, melting, and analysis of metal, non-metal, and other compound materials in laboratories and companies.
1400℃ Muffle Furnace Features
- Max. temperature: 1400℃
- Volume 1~1000L
- High-quality SiC heating elements.
- The upper door and the side door can be customized to keep the operator away from the heat source.
- 50 segments programmable and PiD auto control.
- With an over-heat alarm function.
- Cooling fans can reduce the temperature of the furnace shell less than 60℃.
Standard Parts
- Fire Block
- High temperature gloves
- Crucible clip
- Operation manual
- Spare heating elements
Optional Parts
- 7 inch touch screen
- Gas Vent
- Observation Hole
- Furnace Furniture
- Alumina crucible
- Software
1400℃ Muffle Furnace Technical Parameters
Model | Max. Temp (℃) | Working Temp (℃ ) | Chamber Size (W*H"D) mm | Volume (L) | Power | Phase | Themo |
|---|---|---|---|---|---|---|---|
BR-14N-1 | 1400 | 1300 | 100*100*100 | 1 | 1 | 1 | S |
BR-14N-2 | 1400 | 1300 | 120*120*130 | 2 | 2 | 1 | S |
BR-14N-3 | 1400 | 1300 | 150*150*150 | 3 | 3 | 1 | S |
BR-14N-5 | 1400 | 1300 | 150*150*200 | 5 | 4 | 1 | S |
BR-14N-8 | 1400 | 1300 | 200*200*200 | 8 | 5 | 1 | S |
BR-14N-12 | 1400 | 1300 | 200*200*300 | 12 | 7 | 1 | S |
BR-14N-27 | 1400 | 1300 | 300*300*300 | 27 | 9 | 1 | S |
BR-14N-36 | 1400 | 1300 | 300*300*400 | 36 | 11 | 3 | S |
BR-14N-64 | 1400 | 1300 | 400*400*400 | 64 | 18 | 3 | S |
BR-14N-125 | 1400 | 1300 | 500*500*500 | 125 | 27 | 3 | S |
BR-14N-216 | 1400 | 1300 | 600*600*600 | 216 | 40 | 3 | S |
BR-14N-512 | 1400 | 1300 | 800*800*800 | 512 | 70 | 3 | S |
BR-14N-729 | 1400 | 1300 | 900*900*900 | 729 | 88 | 3 | S |
BR-14N-1000 | 1400 | 1300 | 1000*1000*1000 | 1000 | 110 | 3 | S |
* Other size can be customized.
