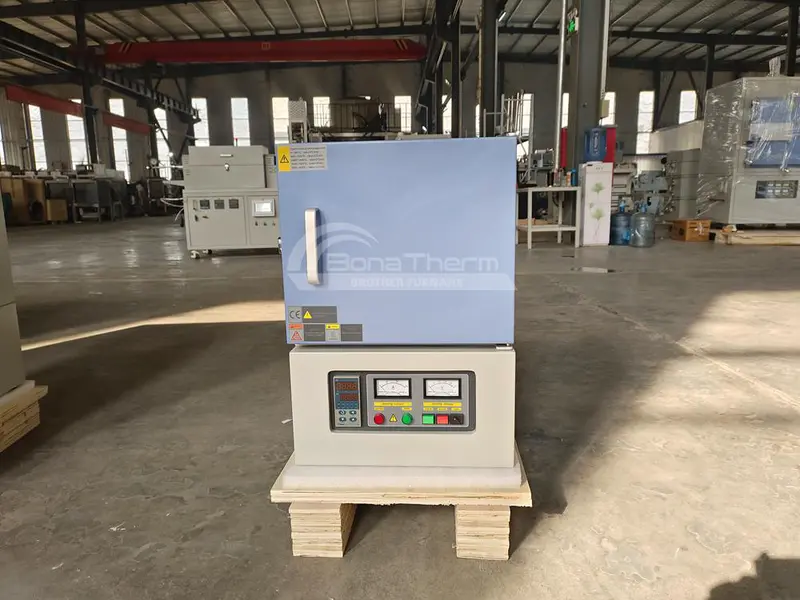

1700℃ Lab Electric Resistance Furnace for Sintering
- 2025-04-09 01:04
- Brother Furnace
A leading research organization has elevated its high-temperature materials development capabilities with the integration of our 1700°C Lab Electric Resistance Furnace for Sintering. Procured by the university’s advanced materials science laboratory, this furnace provides unparalleled thermal performance for processing ultra-high-temperature ceramics, carbon composites, and refractory alloys. Engineered with precision temperature control (±1°C uniformity) and excellent uniformity, the furnace supports critical applications such as sintering, annealing, etc.
1700℃ Electric Resistance Furnace Features
- Maximum Temperature: 1700°C
- Chamber Size: 100x100x100mm (WxHxD)
- Furnace Chamber: High-purity ceramic fiber board
- Heating Elements: High-quality MoSi2 heating elements
- Temperature Control: Touch screen controller with accuracy of ±1°C
- Thermocouple B type (Pt-Rh) with 99.7% purity Alumina tube
- Safety Features: Over-temperature protection, door safety switch
- Furnace top reinforcement
1700℃ Electric Resistance Furnace Technical Parameters
Model | Max. Temp (℃) | Working Temp (℃ ) | Chamber Size (W*H"D) mm | Volume (L) | Power | Phase | Themo |
|---|---|---|---|---|---|---|---|
BR-17M-1 | 1700 | 1600 | 100*100*100 | 1 | 1 | 1 | B |
BR-17M-2 | 1700 | 1600 | 120*120*130 | 2 | 3 | 1 | B |
BR-17M-3 | 1700 | 1600 | 150*150*150 | 3 | 4 | 1 | B |
BR-17M-5 | 1700 | 1600 | 150*150*200 | 5 | 5 | 1 | B |
BR-17M-8 | 1700 | 1600 | 200*200*200 | 8 | 7 | 1 | B |
BR-17M-12 | 1700 | 1600 | 200*200*300 | 12 | 8 | 1 | B |
BR-17M-27 | 1700 | 1600 | 300*300*300 | 27 | 10 | 1 | B |
BR-17M-36 | 1700 | 1600 | 300*300*400 | 36 | 12 | 3 | B |
BR-17M-64 | 1700 | 1600 | 400*400*400 | 64 | 20 | 3 | B |
BR-17M-125 | 1700 | 1600 | 500*500*500 | 125 | 30 | 3 | B |
BR-17M-216 | 1700 | 1600 | 600*600*600 | 216 | 45 | 3 | B |
BR-17M-512 | 1700 | 1600 | 800*800*800 | 512 | 80 | 3 | B |
BR-17M-729 | 1700 | 1600 | 900*900*900 | 729 | 96 | 3 | B |
BR-17M-1000 | 1700 | 1600 | 1000*1000*1000 | 1000 | 120 | 3 | B |
* Other size can be customized.
