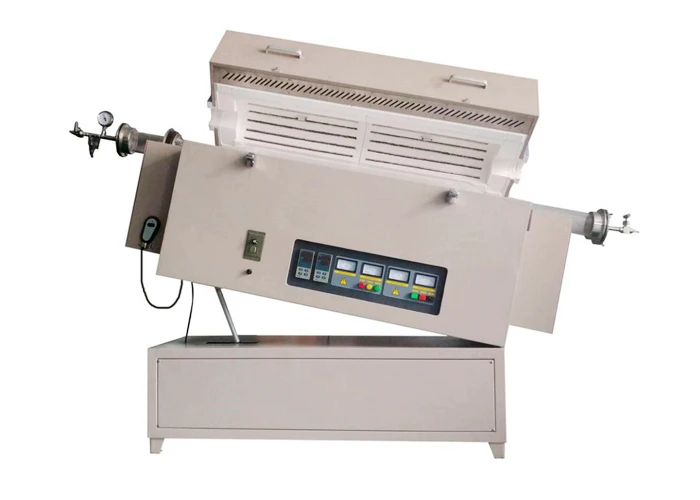

BR-12NRT rotary tube furnace is designed for the calcining inorganic compounds with better uniformity, especially excellent for preparing Li-lon battery cathode materials with a conductive coating, such as LiFePO3, LiMnNiO3, etc in the Laboratory.
Rotary Tube Furnace Features
- Maximum temperature:
- 1200℃ (Heating wires)
Furnace tilt angle 0 – 30℃ variable, it’s convenient for loading and unloading material
Tube rotating Speed 3 – 7 RPM variable ( reversible), and there are 3 quartz lifting plates on the inner wall of the tube. When rotating, the material is fully turned over and evenly heated.
- 50 segments programmable PID auto control.
- double shell and air-cooled structure, furnace surface temperature below 50℃
- 304 stainless steel double sealing flange.
- Adjustable flange support structure at both ends to extend the service life of the furnace tube.
- Over-temperature protection function: when the temperature exceeds the allowed setting value automatically power off.
- Safety protection: when the furnace has an electrical leakage, power off automatically.
- Heating rate ≦20 C/ min
- Temperature control accuracy ±1℃.
- Maximum vacuum degree -0.1M Pa.
- Equipped with molecular pump, max. vacuum up to 7x10-4 Pa.
Standard Parts
- Tube plug 2pcs
- Furnace tube 1pc
- Vacuum pump 1set
- Vacuum sealing flange 1set
- Vacuum pressure gauge 1pc
Optional Parts
- Vacuum system (rotary vane mechanical pump, diffusion pump, molecular pump)
- Atmosphere system (float flowmeter, mass flowmeter)
- Quick discharge flange, tee flange
- 7-inch HD touch screen
Rotary Tube Furnace Technical Parameters
| Model | Tube Dia*Heating Zone (mm) | Power | Max. Temp (℃) | Working Temp (℃) | Thermo couple | Tube Material | Heating Elements |
|---|---|---|---|---|---|---|---|
BR-12NRT-60/300 | 60*300 | 5 | 1200 | 1100 | K type | Quartz Tube | Heating wires |
| BR-12NT-60/450 | 60*450 | 5 | 1200 | 1100 | K type | Quartz Tube | Heating wires |
| BR-12NT-80/300 | 80*300 | 5 | 1200 | 1100 | K type | Quartz Tube | Heating wires |
| BR-12NT-80/450 | 80*450 | 5 | 1200 | 1100 | K type | Quartz Tube | Heating wires |
| BR-12NT-100/300 | 100*300 | 7 | 1200 | 1100 | K type | Quartz Tube | Heating wires |
| BR-12NT-100/450 | 100*450 | 7 | 1200 | 1100 | K type | Quartz Tube | Heating wires |
| BR-12NT-150/300 | 150*300 | 9 | 1200 | 1100 | K type | Quartz Tube | Heating wires |
| BR-12NT-150/450 | 80*450 | 9 | 1200 | 1100 | K type | Quartz Tube | Heating wires |
*Other size can be customized.
