Research Institutes Laboratory Vacuum Furnace , Small Continuous Sintering Furnace

Research Institutes Laboratory Vacuum Furnace , Small Continuous Sintering Furnace

  • Research Institutes Laboratory Vacuum Furnace , Small Continuous Sintering Furnace
Research Institutes Laboratory Vacuum Furnace , Small Continuous Sintering Furnace
Product Details:
Place of Origin: China
Brand Name: Brother Furnace
Certification: CE
Model Number: BR-18HM / XD-18HM
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Strong wooden box for global shipping
Delivery Time: 7-21 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Sets per month
Contact Now
Detailed Product Description
MAX WORKING TEMPERATURE: 1800℃ VOLUME: 1 ~ 36L
HEATING ELEMENT: Super MoSi2 Heating Element Furnace Chamber: Ceramic Fiber Chamber Imported From Japan, Ultra-high Temperature Coating Inside
TEMPERATURE CONTROL: 50 Segments Programmable And PID Auto Control ALARM: With Over Temperature Alarm Function
COOLING: Cooling Fan Can Reduce The Temperature Of The Casing VOTAGE: AC 110V Or AC 220V Or AC 380V 50/60 Hz
MAX. HEATING RATE: 20°C /min TEMPERATURE ACCURACY: ±1℃
TEMPERATURE UNIFORMITY: ±5℃ Application: Sintering
High Light:

electric muffle furnace

,

heat treatment muffle furnace

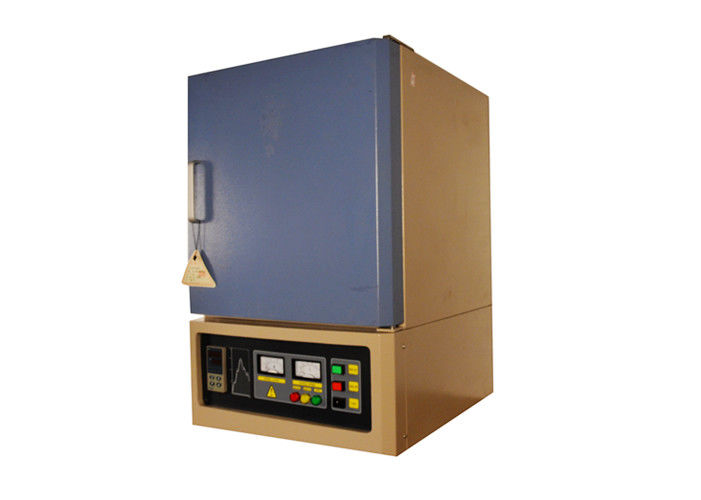

High Temperature 1800℃ Lab Sintering Muffle Furnace, 1800C Sintering Box Furnace







Brother's High Temperature 1800℃ Lab Sintering Muffle Furnace, 1800C Sintering Box Furnace is mainly used for sintering under 1800C.



Brother muffle furnaces using polycrystalline mullite fiber lining, and the total thickness is 120-250mm, to ensure the very good thermal effect. Double layer of furnace shell with fan cooling, the surface temperature is less than 60℃. Strength structured furnace roof, to ensure long life to avoid any collapse from continuous working.
Research Institutes Laboratory Vacuum Furnace , Small Continuous Sintering Furnace 0

This furnace is mainly used for universities, research institutes and production enterprises for the sintering, melting, analysis of metal, non-metal and other compound materials.

  • Max working temperature 1800℃
  • Volume 1~36L
  • Super MoSi2 heating element.
  • Ceramic fiber chamber imported from Japan, ultra-high temperature coating inside.
  • 50 segments programmable and PID auto control
  • With over temperature alarm function
  • Double layer of furnace shell with fan cooling, the Surface temperature is less than 60℃


Standard Spares:

  • Fire brick
  • High temperature gloves
  • Crucible clip
  • Operation Manual


Optional Spares:

  • 7-inch touch screen
  • Gas vent
  • Observation hole
  • Furnace furniture
  • Alumina crucible
  • Software







1800℃ Lab Sintering Muffle Furnace Technical Parameter:

Model

Max

Temperature

(℃)

Inner size

(W *H * D) mm

Volume

(L)

Power

(KW)

Phase Thermocouple
BR-18HM-1 1800 100*100*100 1 2 1 B type
BR-18HM-2 1800 120*120*130 2 4 1 B type
BR-18HM-3 1800 150*150*150 3 6 1 B type
BR-18HM-5 1800 150*150*200 5 7 1 B type
BR-18HM-8 1800 200*200*200 8 8 1 B type
BR-18HM-12 1800 200*200*300 12 9 1 B type
BR-18HM-27 1800 300*300*300 27 12 3 B type
BR-18HM-36 1800 300*300*400 36 15 3 B type







Why Brother's 1800℃ Lab Sintering Muffle Furnace?





Manufacturer with 10+ years' experience

  • Best quality
  • Customized design
  • Experienced workers
  • Big factory


Customers from more than 30 countries choose us

  • Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.


Best service, Fast response

  • Free design for special furnace
  • Free technical support for the lifetime
  • Free sample test



If you're interested in our High Temperature 1800℃ Lab Sintering Muffle Furnace 1800C Sintering Box Furnace, contact us now to get a quote!
