We Master Heat ! | 200 ~ 2200℃
 |
| Place of Origin: | China |
| Brand Name: | Brother Furnace |
| Certification: | CE |
| Model Number: | BR-12N / XD-12N |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Strong wooden box for global shipping |
| Delivery Time: | 7-21 Working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Sets per month |
| Max Working Temperature: | 1200℃ | Volume: | 1 ~ 1000L |
|---|---|---|---|
| Heating Element: | High Quality Fe-Cr-Al-Mo Resistance Wire | Furnace Door: | The Upper Door And The Side Door Can Be Customized To Keep The Operator Away From The Heat Source |
| Temperature Control: | 50 Segments Programmable And PID Auto Control | Alarm: | With Over Temperature Alarm Function |
| Cooling: | Cooling Fan Can Reduce The Temperature Of The Casing | Votage: | AC 110V Or AC 220V Or AC 380V 50/60 Hz |
| Max. Heating Rate: | 20°C /min | Temperature Accuracy: | ±1℃ |
| Temperature Uniformity: | ±5℃ Over 120mm @ 1200℃; ±3℃ Over 80mm @ 1100℃ | Application: | Annealing |
| High Light: | programmable muffle furnace,heat treatment muffle furnace |
||

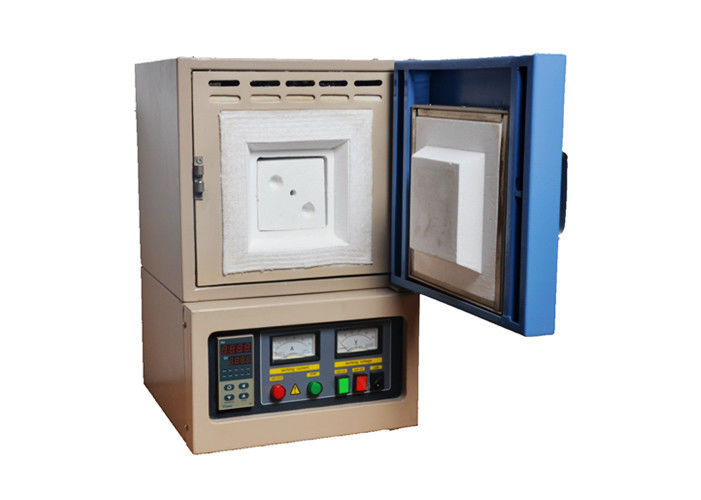

High Temperature 1200℃ Lab Annealing Muffle Furnace, 1200C Annealing Box Furnace
Brother's High Temperature 1200℃ Lab Annealing Muffle Furnace, 1200C Annealing Box Furnace is mainly used for Lab Annealing.
Using polycrystalline mullite fiber lining, and the total thickness is 120-250mm, to ensure the very good thermal effect. Double layer of furnace shell with fan cooling, the surface temperature is less than 60℃. Strength structured furnace roof, to ensure long life to avoid any collapse from continuous working.
This furnace is mainly used for universities, research institutes and production enterprises for the sintering, melting, analysis of metal, non-metal and other compound materials.
Standard Parts:
Optional Parts:
1200℃ Lab Annealing Muffle Furnace Technical Parameter:
| Model | Max temperature(°C) | Inner size (W *H * D) mm | Volume (L) | Power (KW) | Phase | Thermocouple |
| BR-12N-1 | 1200 | 100*100*100 | 1 | 0.8 | 1 | K type |
| BR-12N-2 | 1200 | 120*120*130 | 2 | 1.2 | 1 | K type |
| BR-12N-3 | 1200 | 150*150*150 | 3 | 2.5 | 1 | K type |
| BR-12N-5 | 1200 | 150*150*200 | 5 | 3 | 1 | K type |
| BR-12N-8 | 1200 | 200*200*200 | 8 | 5 | 1 | K type |
| BR-12N-12 | 1200 | 200*200*300 | 12 | 6 | 1 | K type |
| BR-12N-27 | 1200 | 300*300*300 | 27 | 8 | 1 | K type |
| BR-12N-36 | 1200 | 300*300*400 | 36 | 10 | 3 | K type |
| BR-12N-64 | 1200 | 400*400*400 | 64 | 16 | 3 | K type |
| BR-12N-125 | 1200 | 500*500*500 | 125 | 25 | 3 | K type |
| BR-12N-216 | 1200 | 600*600*600 | 216 | 36 | 3 | K type |
| BR-12N-512 | 1200 | 800*800*800 | 512 | 64 | 3 | K type |
| BR-12N-729 | 1200 | 900*900*900 | 729 | 80 | 3 | K type |
| BR-12N-1000 | 1200 | 1000*1000*1000 | 1000 | 100 | 3 | K type |
| Chamber size can be customized | ||||||
Why Brother's1200℃ Lab Annealing Muffle Furnace?
Manufacturer with 10+ years' experience
Customers from more than 30 countries choose us
Best service, Fast response
If you're interested in our High Temperature 1200℃ Lab Annealing Muffle Furnace, 1200C Annealing Box Furnace, contact us now to get a quote!
