We Master Heat ! | 200 ~ 2200℃
 |
| Place of Origin: | China |
| Brand Name: | Brother Furnace |
| Certification: | CE |
| Model Number: | BR-12S / XD-14S |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Strong wooden box for global shipping |
| Delivery Time: | 7-21 Working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Sets per month |
| MAX WORKING TEMPERATURE: | 1400℃ | VOLUME: | 1 ~ 1000L |
|---|---|---|---|
| HEATING ELEMENT: | High Quality SiC Heating Element | FURNACE DOOR: | The Upper Door And The Side Door Can Be Customized To Keep The Operator Away From The Heat Source |
| TEMPERATURE CONTROL: | 50 Segments Programmable And PID Auto Control | ALARM: | With Over Temperature Alarm Function |
| COOLING: | Cooling Fan Can Reduce The Temperature Of The Casing | VOTAGE: | AC 110V Or AC 220V Or AC 380V 50/60 Hz |
| MAX. HEATING RATE: | 20°C /min | TEMPERATURE ACCURACY: | ±1℃ |
| TEMPERATURE UNIFORMITY: | ±5℃ | Application: | Industrial Tempering Under 1400°C |
| High Light: | vacuum muffle furnace,industrial chamber furnace |
||

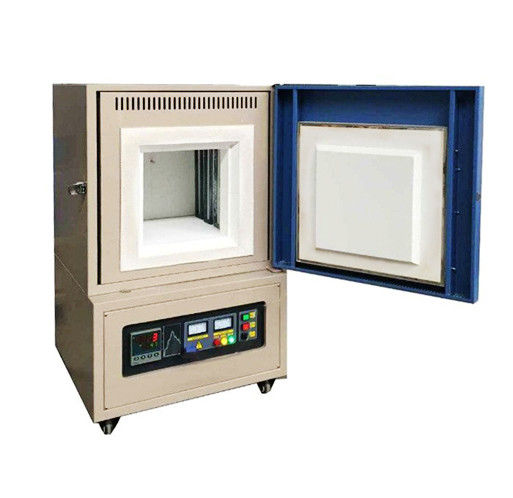

High Temperature 1400℃ Industrial Tempering Muffle Furnace, 1400C Industrial Tempering Chamber Furnace
Brother's High Temperature 1400℃ Industrial Tempering Muffle Furnace, 1400C Industrial Tempering Chamber Furnace mainly used for production enterprises to do the high-temperature industrial tempering under 1400℃.
Using polycrystalline mullite fiber lining, and the total thickness is 120-250mm, to ensure the very good thermal effect. Double layer of furnace shell with fan cooling, the surface temperature is less than 60℃. Strength structured furnace roof, to ensure long life to avoid any collapse from continuous working.
Standard Spares:
Optional Spares:
High Temperature 1400℃ Industrial Tempering Muffle Furnace Technical Parameter
| Model | Max temperature(°C) | Inner size (W *H * D) mm | Volume (L) | Power (KW) | Phase | Thermocouple |
| BR-14S-1 | 1400 | 100*100*100 | 1 | 1 | 1 | S type |
| BR-14S-2 | 1400 | 120*120*130 | 2 | 2 | 1 | S type |
| BR-14S-3 | 1400 | 150*150*150 | 3 | 3 | 1 | S type |
| BR-14S-5 | 1400 | 150*150*200 | 5 | 4 | 1 | S type |
| BR-14S-8 | 1400 | 200*200*200 | 8 | 5 | 1 | S type |
| BR-14S-12 | 1400 | 200*200*300 | 12 | 7 | 1 | S type |
| BR-14S-27 | 1400 | 300*300*300 | 27 | 9 | 1 | S type |
| BR-14S-36 | 1400 | 300*300*400 | 36 | 11 | 3 | S type |
| BR-14S-64 | 1400 | 400*400*400 | 64 | 18 | 3 | S type |
| BR-14S-125 | 1400 | 500*500*500 | 125 | 27 | 3 | S type |
| BR-14S-216 | 1400 | 600*600*600 | 216 | 40 | 3 | S type |
| BR-14S-512 | 1400 | 800*800*800 | 512 | 70 | 3 | S type |
| BR-14S-729 | 1400 | 900*900*900 | 729 | 88 | 3 | S type |
| BR-14S-1000 | 1400 | 1000*1000*1000 | 1000 | 110 | 3 | S type |
| Chamber size can be customized | ||||||
Why Brother's High Temperature 1400℃ Industrial Tempering Chamber Furnace?
Manufacturer with 10+ years' experience
Customers from more than 30 countries choose us
Best service, Fast response
If you're interested in our High Temperature 1400℃ Industrial Tempering Muffle Furnace, 1400C Industrial Tempering Chamber Furnace, contact us now to get a quote!
