We Master Heat ! | 200 ~ 2200℃
 |
| Place of Origin: | China |
| Brand Name: | Brother Furnace |
| Certification: | CE |
| Model Number: | BR1700 / BR1800 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Strong wooden box for global shipping |
| Delivery Time: | 3-21 Working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000 pcs per month |
| Max Temperature: | 1700°C / 1800°C | Shape: | U, W, L Shape |
|---|---|---|---|
| Diameter: | 3/6, 4/9, 6/12, 7/12, 9/18, 12/24mm | Heating Zone Length: | 80 - 1500 |
| Cooling Zone Length: | 80 - 1500 | Molybdenum Purity: | 99.9% High Purity |
| High Light: | moly disilicide heating elements,molybdenum disilicide heating elements |
||

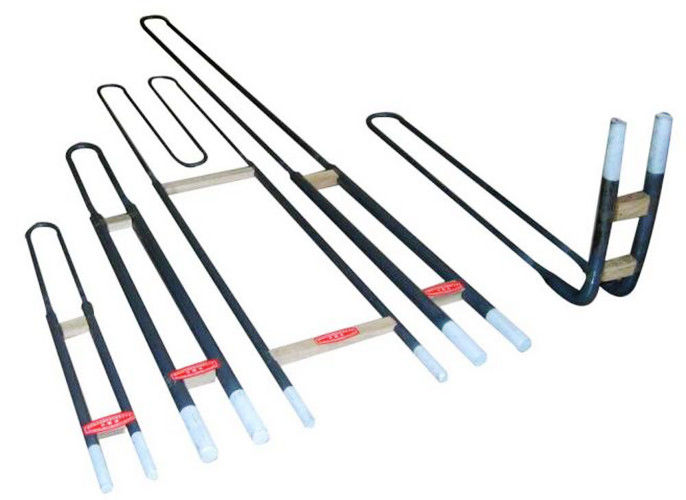

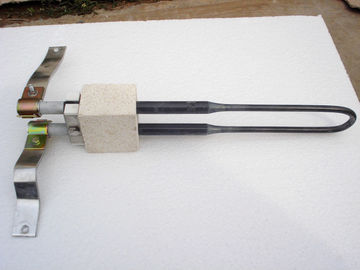

MoSi2 Heating Elements
High Purity MoSi2 Heating Elements, 1700°C 1800°C Molybdenum Disilicide Rod
Application: Widely used in research and production of glass, ceramic, refractory, metallurgy, steel-making, crystal, electronic parts, semiconductor material. The model including BR1700 (working temperature 1600℃) and BR1800 (working temperature 1700℃)

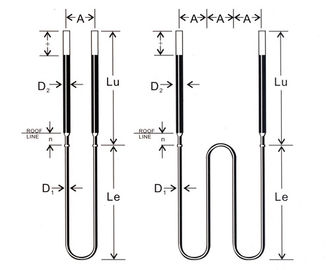

Technical parameter:
|
Heating zone dia. D1 |
Cooling zone dia. D2 |
Heating zone length Le |
Cooling zone length Lu |
Central distance A |
| 3mm | 6mm | 80-300mm | 80-500mm | 25mm |
| 4mm | 9mm | 80-350mm | 80-500mm | 25mm |
| 6mm | 12mm | 80-800mm | 80-1000mm | 25-60mm |
| 7mm | 12mm | 80-800mm | 80-1000mm | 25-60mm |
| 9mm | 18mm | 100-1200mm | 100-2500mm | 40-80mm |
| 12mm | 24mm | 100-1500mm | 100-1500mm | 40-100mm |
|
Note: 1.Special size is customizable. 2.Delivery time only need 3 days for normal size |
||||
| Model: BR1700 (working temperature 1600℃) and BR1800(working temperature 1700℃) | ||||
Please confirm the following data before order:
1. Type
2. Diameter: D1, D2
3. Heating zone length: Le
4. Cooling zone length: Lu
5. The distance between two terminals: A
